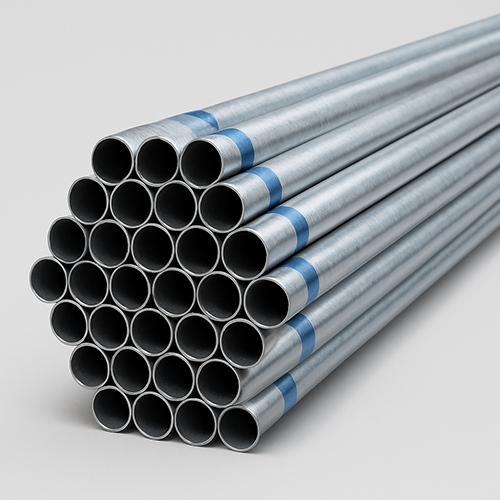

Gi pipe

Gi pipe Specification

Temperature Range
-20C to +120C (approx.)

Diameter
Nominal Bore: 1/2 Inch to 12 Inch (approx. 15 mm to 300 mm)

Bend Radius
Not suitable for tight bends; standard long-radius bends applicable

Sealing Type
Threaded or Welded Joint, Gasket (if applicable)

Tolerance
0.1 mm

Yield Strength
Min. 195 MPa (Grade dependent)

Tensile Strength
Min. 320 MPa (Grade dependent)

Coating Type
Zinc Coating (Hot Dipped or Electroplated)

Connection Type
Screwed / Socketed / Welded

Thread Type
BSPT / NPT / Custom

Flexibility
Rigid

Product Type
GI Pipe (Galvanized Iron Pipe)

Material
Mild Steel (Galvanized)

Connection
Plain End / Threaded / Socketed

Shape
Round

Standard
IS 1239 / IS 3589 / ASTM A53 / BS 1387

Surface Treatment
Hot Dip Galvanized

Outer Diameter
15 mm to 300 mm

Section Shape
Circular

Length
6 Meter (Standard); can be customized

Thickness
1.6 mm to 6 mm

Color
Silver / Metallic

Usage
Plumbing, Water Supply, Construction, Fencing, Irrigation, Industrial Piping

Rated Pressure
Up to 20 Bar (varies by size & grade)

Application
Water, Gas, & Oil Transmission; Structural & General Engineering

Material Grade
IS 1239 Grade A/B/C, IS 3589 FE330/FE410, ASTM A53 Grade A/B

Corrosion Resistance
High due to galvanization

Bundle Packing
Hexagonal bundles with steel strips

Density
7.85 g/cm3

Storage Conditions
Store in dry and ventilated area

Ends
Plain, Beveled, or Threaded

Inspection
Hydrostatic Pressure Test, Eddy Current Test

Recyclability
100% recyclable

Elongation
20%

Custom Orders
Available as per client specification

Maintenance
Minimal due to protective zinc layer

Pipe Weight
Varies by size; 1.58 kg/m to 27 kg/m

Special Feature
Smooth inner surface for minimum friction loss

Fire Resistance
Non-combustible

About Gi pipe

Experience the rarefied quality of our GI pipes-favored for their gilt-edged corrosion resistance thanks to robust hot dip galvanization. These pipes have consistently garnered favorable reviews for their noteworthy fire resistance and minimal maintenance needs. With a price cut on select sizes and options to personalise orders, clients secure optimal value. Tailored for diverse applications-from water supply and construction to industrial piping-each piece is meticulously tested, meeting stringent standards like IS 1239, ASTM A53, and BS 1387. Choose a product that merges reliability with distinguished performance.

Special Features and Commercial Applications of GI Pipe

Our GI pipes are renowned for their smooth inner surface, which ensures minimal friction loss and promotes efficient flow. Designed to meet stringent industrial standards, these pipes are well-suited for plumbing, water supply lines, general construction, fencing, irrigation, and industrial piping. With high corrosion resistance and non-combustibility, they operate flawlessly across varied environments. Used extensively for water, gas, and oil transmission as well as in structural and engineering projects, they offer a rare blend of durability and adaptability.

Packaging Details, Export Market, and Port Information for GI Pipe

Each GI pipe is securely packed in hexagonal bundles using steel strips, maintaining product integrity during transit. Our main export markets include the Middle East, Africa, Southeast Asia, and Europe. Orders are efficiently processed with a prompt offer based on your purchase order or inquiry. Shipments typically depart from major Indian FOB ports, ensuring timely delivery. With a strong export presence, we are dedicated to providing seamless service and dependable quality to our global clientele.

FAQ's of Gi pipe:

Q: How are the corrosion resistance and fire resistance achieved in these GI pipes?

A: The high corrosion resistance of our GI pipes is due to the hot dip galvanization process, which applies a protective zinc layer. Their non-combustible nature ensures excellent fire resistance, making them ideal for demanding environments.

Q: What commercial uses are suitable for these GI pipes?

A: GI pipes are commonly used in plumbing, water supply systems, construction projects, industrial piping, fencing, and irrigation. Their strength and adaptability also make them suitable for water, gas, and oil transmission, as well as structural and general engineering applications.

Q: When should I choose plain, beveled, or threaded pipe ends?

A: The choice of pipe ends depends on your installation requirements: plain ends are typically for welding, beveled for secure joints, and threaded ends for screwed or socketed connections. Custom options can also be personalized as per your project needs.

Q: Where should GI pipes be stored to maintain quality?

A: It is important to store GI pipes in a dry and well-ventilated area to prevent moisture accumulation, preserving the gilt-edged quality and prolonging service life.

Q: What advantages does the smooth inner surface provide?

A: The smooth inner surface of the GI pipe significantly reduces friction loss, ensuring efficient fluid flow and minimizing energy costs in pumping operations.

Q: How is product quality assured before shipping GI pipes?

A: Every GI pipe undergoes rigorous inspections, including hydrostatic pressure tests and eddy current testing, to maintain high standards and deliver reliable products to customers.
